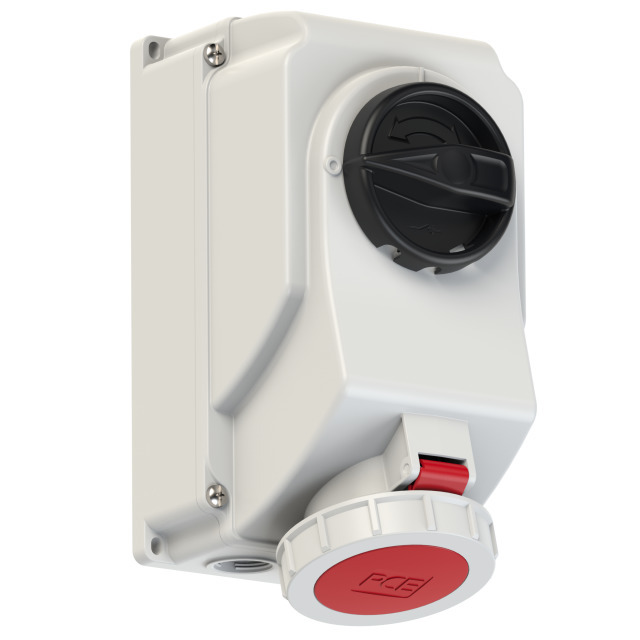

CEE-switched interlocked socket DIN 32A 4p 3h IP66/IP67
housing material: PC/ABS
rated current: 32A
number of poles: 4 (3P+PE)
clock-position: 3h
rated voltage/frequency: 380/440V~ / 50/60Hz
contacts: brass nickel plated
connection technology: screw terminals
wall mounting, mechanical interlock, hinged window (5 modules), DIN-rail
switch: ON/OFF PCE-Merz ML0; EN 60947-3; AC22A, 10kA
cable entry: top, bottom or rear (incl. threaded blind cap)
IP protection class: IP66/IP67
SKU 76242-3
Brand PC Electric
Shipping Weight 1.5790kg
Shipping Width 0.140m
Shipping Height 0.170m
Shipping Length 0.380m
Shipping Cubic 0.009044000m3
Unit Of Measure each
